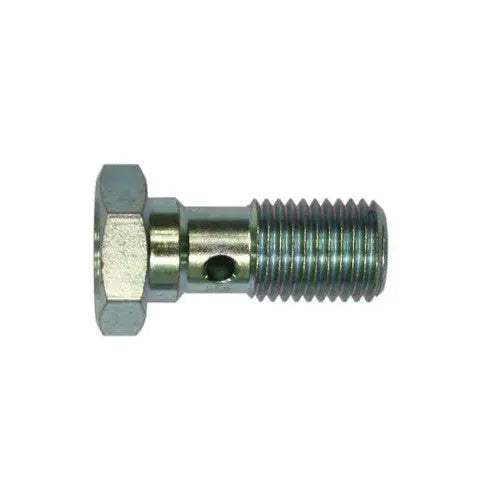

Single banjo bolt | JIC (UNF)
Banjo bolts are available in UNF, Metric and BSP type thread fitments, three different length; single and double variations.
- Fitting type: Reusable Banjo Bolt
- Fluid applications: Brake, Clutch lines
- Compatible fittings: 600 series (AN-03, AN-04 and AN-06)
- Materials: Stainless Steel, Aluminium, Steel
Short version ("under hex" length 18 mm) - use for banjo fittings with ball height 8mm.
Long version ("under hex" length 25 mm) - use for banjo fittings with ball height 12 mm
*The banjo fitting seals to the banjo bolt using two washers, as per diagram below.
